Terra Safety Box Terra Safety Box is a manhole system made of plastic.

Terra Safety Box

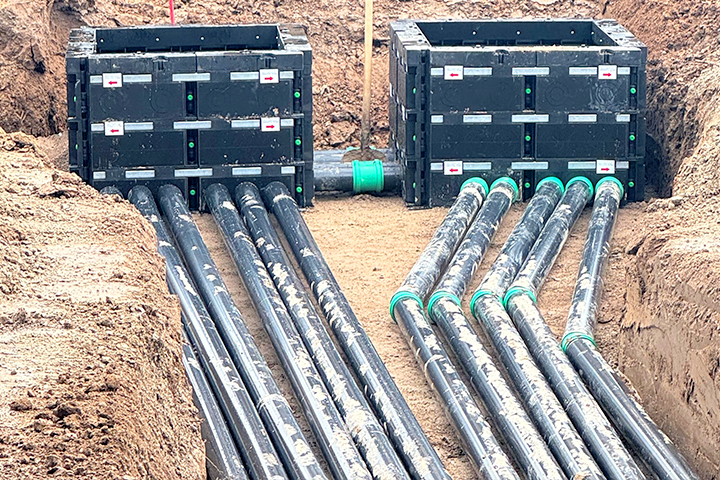

TerraSafe is a manhole system made of plastic. Due its low weight the TerraSafe is an ideal alternative to conventional concrete cable chambers. The modular design and predetermined cable entry options ensure a time-saving installation. TerraSafe is made of polypropylene which is recyclable compatible with groundwater and petroleum-resistant.

Product specification

  • Material: Polypropylene, recyclable compatible with groundwater, resistant to petroleum oils
  • Covers: D400/B125, cast iron, concrete, plastic, paveable

Advantages

  • Low weight
  • Overbuild options on existing pipe routes
  • • Pipe entry options as predetermined breaking points in exchangeable adapter plates
  • • Height-adjustable cover 0-60 mm
  • • Various hights due various frame combinations

Optional accessories

  • Backfilling materials
  • Fiber enclosure support
  • Pipe seal adapater
  • Customer specific company logo
  • Cover lifting devices
  • Locking mechnisms

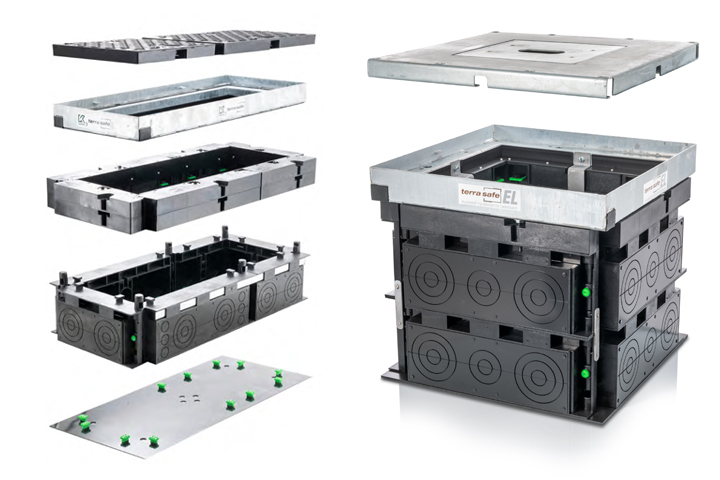

Terra Safety Box-EL

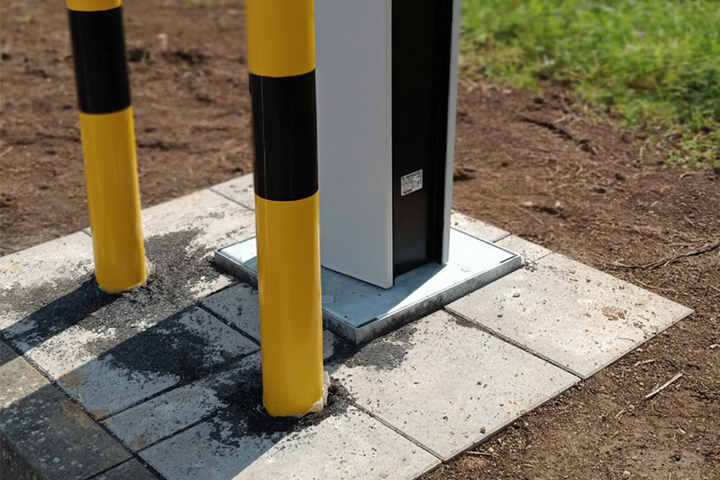

The plastic foundation TerraSafe-EL provides a solid base for AC and DC electric vehicle charging stations. Different interchangeable covers with pre-fabricated fixing points for many charging stations means maximum flexibility, also in case of a later replacement. Charging stations can be replaced without further civil engineering work. Due to its low weight the TerraSafe-EL is an ideal alternative to conventional concrete foundations. The variable structure and prefabricated cable entries enable a time-saving installation. The TerraSafe-EL plastic foundation is made of recyclable polypropylene, is compatible with groundwater and resistant to petroleum oil.

Product specification

  • Material: Polypropylene, recyclable, compatible with groundwater, resistant to petroleum oil
  • Covers: Steel, hot-dip galvanised, interchangeable, with pre-fabricated fixing points for many charging stations

Advantages

  • Low weight
  • Reduction in installation and logistics costs
  • No civil engineering work required when replacing the charging station
  • Suitable for many AC and DC charging stations
  • Pre-fabricated cable entries as predetermined breaking points in interchangeable adapter plates
  • Height-adjustable cover, 0-60mm (not available for size 250/250)
  • Various heights due optional frames

Optional accessories

  • Backfill materials
  • Rail with earthing and strain relief clamps
  • Cable seal-adapter
  • Temporary cover, iron cast, D400, without fixing points
